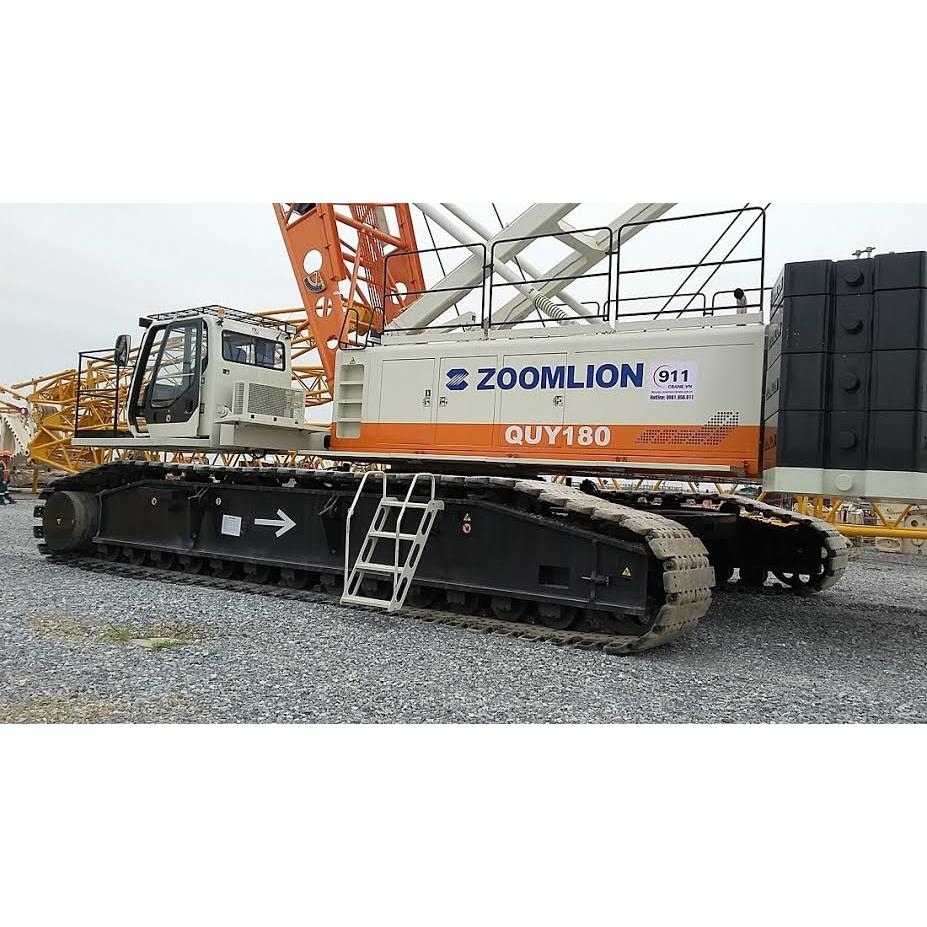

THÔNG SỐ KỸ THUẬT CẨU BÁNH XÍCH ZOOMLION QUY180:
Ser. No. |
Item |
Unit |
Value |
Remark |
---|---|---|---|---|
1 |
Maximum lifting weight ×radius |
t×m |
180×5 |
|
2 |
Maximum lifting moment |
T·m |
1062.4 |
132.8 (lifting weight) ×8 (range) |
3 |
Basic boom dead weight |
t |
167 |
|
4 |
Length of main boom |
m |
20~83 |
|
5 |
Maximum lifting weight of tower boom |
t |
38 |
|
6 |
Length of tower boom |
m |
24~51 |
|
7 |
Maximum lifting weight of jib |
t |
25t |
|
8 |
Length of fixed Jib |
m |
13~31 m |
|
9 |
Speed of rope on the drum of main winch |
m/min |
110 |
Drum outermost layer |
10 |
Speed of rope on the drum of auxiliary winch |
m/min |
110 |
Drum outermost layer |
11 |
Speed of rope on the drum of derricking winch |
m/min |
30 |
Drum outermost layer |
12 |
Swing speed |
r/min |
0~1.4 |
|
13 |
Travelling speed |
km/h |
0~1.2 |
|
14 |
Gradeability |
% |
30% |
|
15 |
Pressure to the ground |
MPa |
0.1 |
|
16 |
Outline dimension length ×width ×height |
m |
10.6×7.1×3.65 |
Mast-free main boom |
17 |
Engine rated power / speed |
Kw/rpm |
227/2000 |
|
18 |
Engine maximum output torque / speed |
N·m/rpm |
1505/1400 |
|
19 |
Engine emission standard |
|
U. S. EPA Tier Ⅲ |
|
20 |
Crawler gauge ×crawler length × crawler width |
mm |
6000×7750×1100 |
